Chapter 13: Traction, Tires and Brakes

13.1 Adhesion

The grip of the tyre with the road. The best adhesion occurs on a rough and dry road surface. In rain and/or ice, adhesion is reduced.

13.2 Tyres/tires

Parts of a tyre

1. Pneumatic part: formed by the cover, air and tube (if it has one).

2. Metallic part: rim

Types of tyres:

With tube: rarely used	Without tube (tubeless): better because they reduce the risk of blowout
Air under pressure leaks between the inner tube and the tyre	Airtight coating that replaces the inner tube

When a tyre must be changed, you should try make them all of equal width, size and tread. If you decide to mix tyres, at least use the same ones on the same axle (front or rear).

It is RECOMMENDED to replace a tyre when the tread depth is less than 2 millimetres. When the depth is 1.6 millimetres or every 5 years, it is MANDATORY to change the tyre.

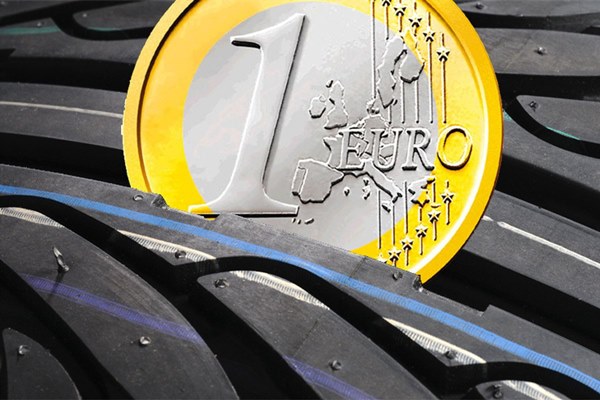

In the picture we can see, how to check tyre wear with a coin.

Keep in mind that wider tyres consume more fuel and have higher adhesion with the road.

Tyre pressure should be checked with cold tyres and the manufacturer’s recommended pressure for either winter or summer must be followed.

You may not install tyres with a speed symbol below the manufacturer’s recommendation.

Spare wheels must have pressure higher than the recommended by the manufacturer. When driving with a spare wheel, it is required to:

• Travel at a maximum of 80km/h
• Maximum of 200km
• Its purpose is to help the vehicle reach the nearest workshop to repair the tyre or replace it with a new one

Less air in the tyre (underinflated)	More air in the tyre (overinflated)
Wears down on the sides Decreases adhesion and consumes more fuel	Wears down more in the center Can damage the suspension

If a wheel is unbalanced (due to blows or bumps), go to the workshop.

In case of a puncture, despite changing the wheel, you should go to the nearest workshop.

In case of a tyre blowout, hold the steering wheel tightly, slowly release the accelerator and apply the brakes.

13.3 Brakes

Lack of brake maintenance is the main reason why cars do not pass the ITV/MOT.

Braking systems:

• Service brake: located on a pedal, it is operated with the foot and brakes all wheels
• Parking brake: the hand brake, used for parking, normally brakes the rear wheels
• Emergency brake: automatic, only acts if the normal brake (service) malfunctions

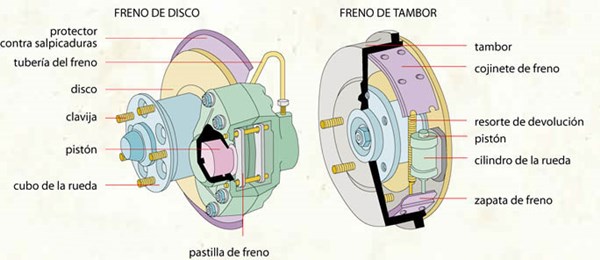

Types of brakes:

• Disc: uses friction pads
• Drum: uses friction shoes

Disc brakes are better, since they cool and dry better when uncovered.

Maintenance: Check the brake fluid and replace it when indicated by the manufacturer. The liquid neither heats or consumes.

If you step on the brake and notice it feels light and spongy, this indicates there is air in the brake fluid pipes.

If when you step on the pedal, it brakes, but you have to go almost to the bottom, it means that the brake fluid level is low.

The brake servo makes the brakes smoother.

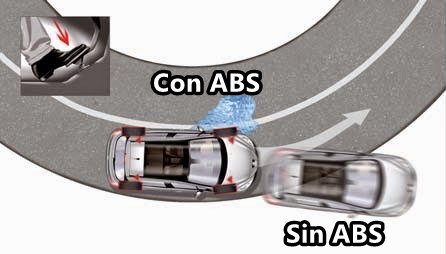

The ABS prevents wheel locking when braking, which prevents the wheels from skidding, so they don’t lose adhesion. In case of emergency braking with ABS, a constant and regular pressure is applied until the vehicle has stopped.

In case of skidding:

• Skidding front axle: corrected by turning the steering wheel to the opposite side of the skid.
• Skidding rear axle: corrected by turning the steering wheel to the same side of the skid.

Braking effectiveness

Depends on:

• The condition of the brakes and brake fluid
• The pressure applied to the brake pedal
• The tyres
• The state of the road, speed and mass of the vehicle

Tyre wear

Can be increased by:

• Driving style
• Vehicle speed
• The weather (+ wear in summer)
• Load and mass
• Incorrect tyre pressure
